ITEM # : MT001

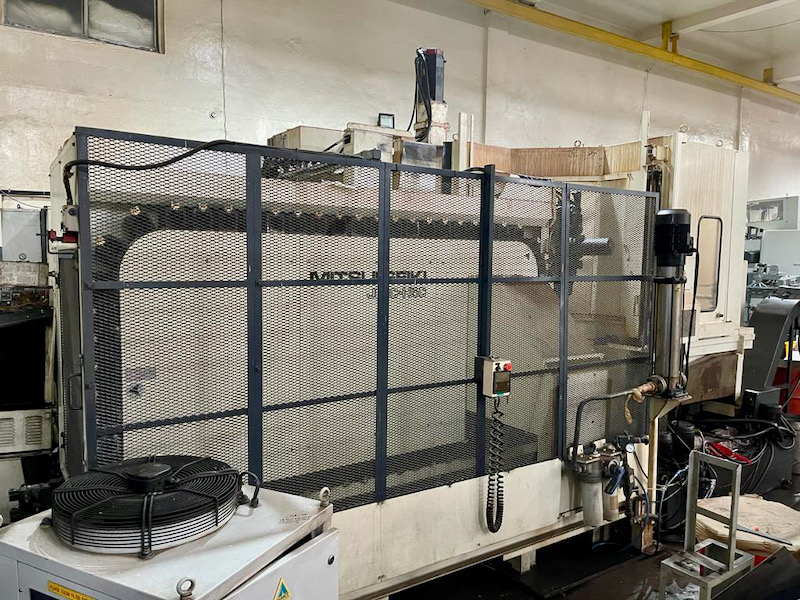

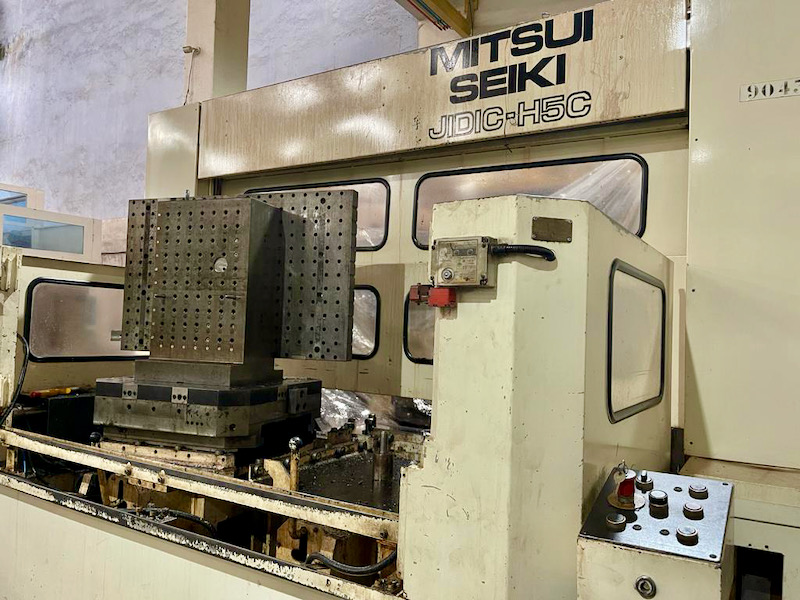

Machine Make : Mitsui Seiki, Japan
Machine Type : CNC Horizontal Jig Boring Machine / Jig Borer
Model : JIDC-H5C

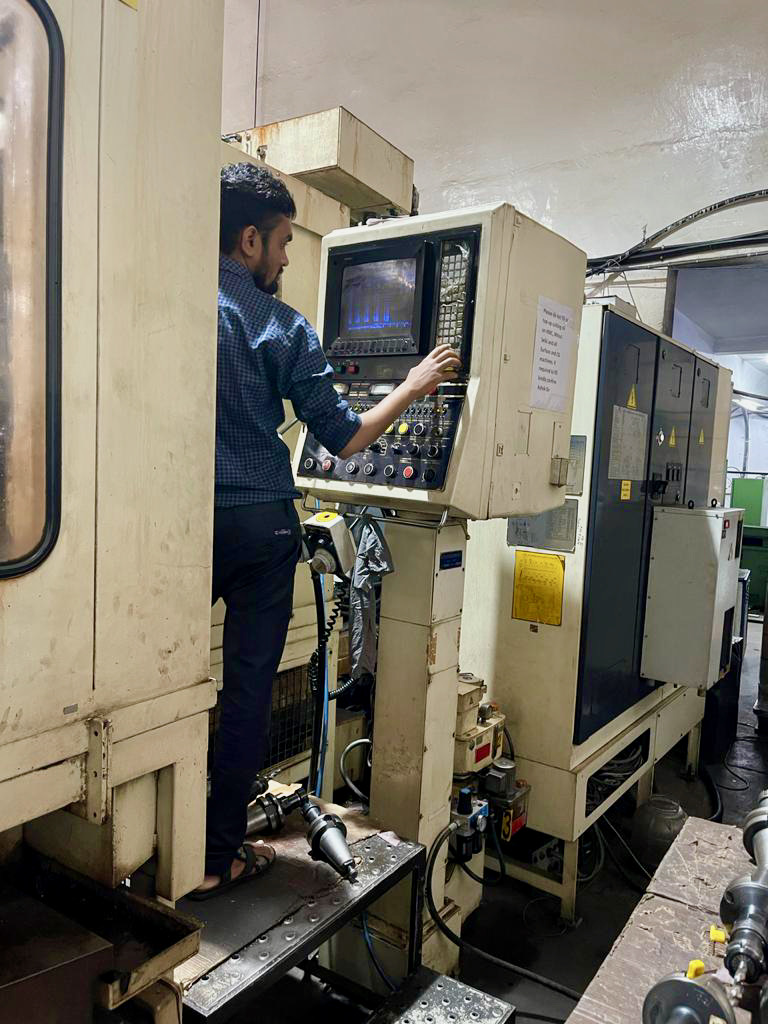

Controller : Fanuc 11M-Model F
Date of Manufacture : 1989
ATC postions : 60
No. of Pallets : 2
Pallet Size : 630 mm x 630 mm
x-axis travel : 780 mm
y-axis travel : 600 mm
z-axis travel : 600 mm
Table load : 1,200 kg
Spindle taper : BT50
Spindle speed : 3,150 RPM

Spindle AC Servo Motor-
Model : Fanuc 12S
Rating Continuous / 30 min : 11 kW / 15 kW
Voltage : 200 V
Current : 39/53 Amp

X-Axis Servo Motor-
Model : Fanuc 30
Torque : 37 Nm
Speed : 1,200 RPM
Voltage : 133 V
Current : 22 Amp

Y-Axis Servo Motor-
Model : Fanuc 20S/1500
Torque : 23 Nm
Speed : 1,500 RPM
Voltage : 143 V
Current : 15 Amp

Z-Axis Servo Motor-
Model : Fanuc 30
Torque : 37 Nm
Speed : 1,200 RPM
Voltage : 133 V
Current : 22 Amp

Rotary Table B-Axis Servo Motor-
Model : Fanuc 30
Torque : To find out
Speed : To find out
Voltage : To find out
Current : To find out

Hydraulic Motor-
Rating : 5.5 kW
Voltage : 380 V
Current : 11.6 Amp

Automatic Pallet Changer (APC)-
Hydraulic System and Numerical Control System
No of Pallets : 2
Hydraulic Unit : 3.7 Kw 4p

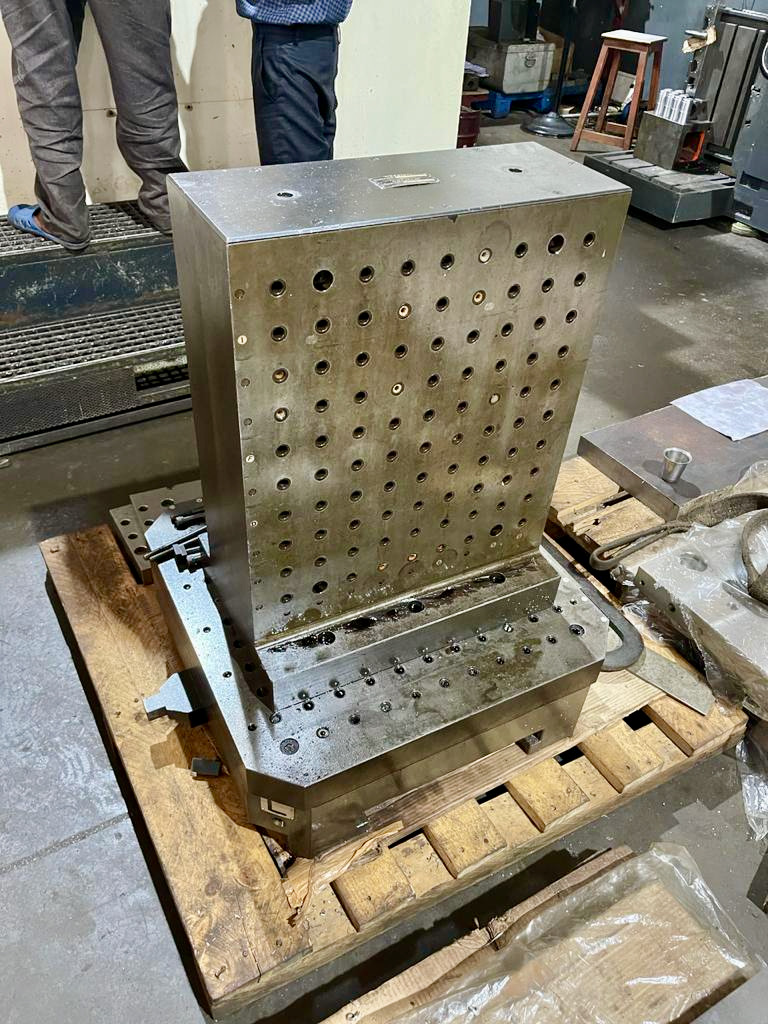

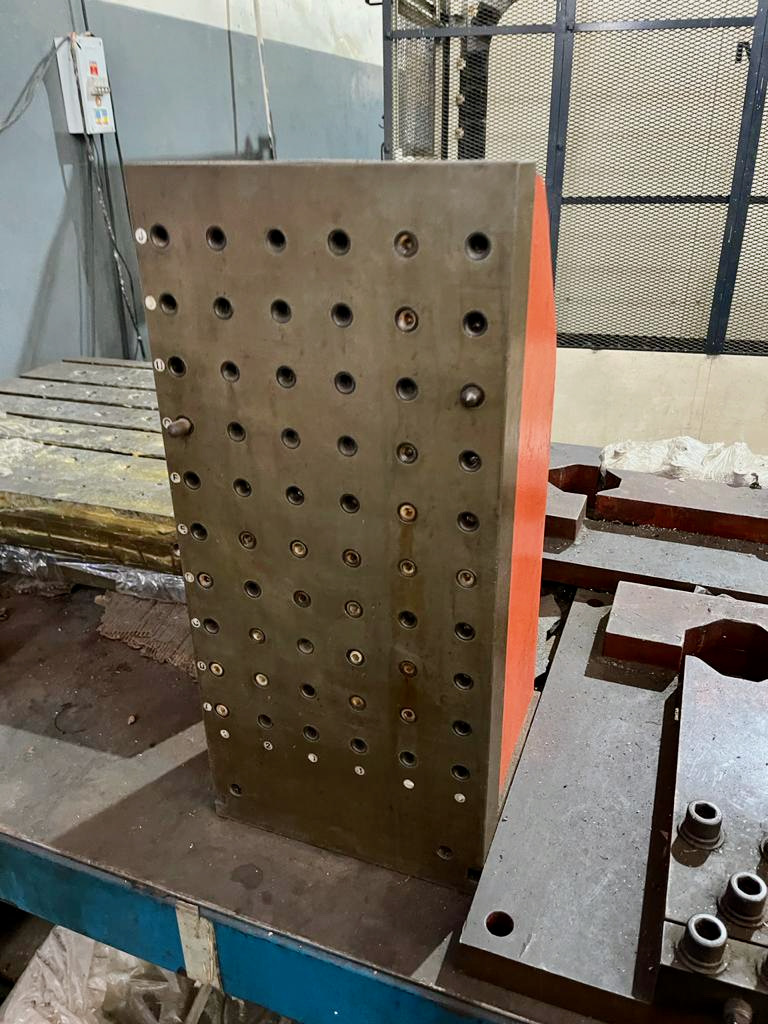

Includes a number of Tomb Stones

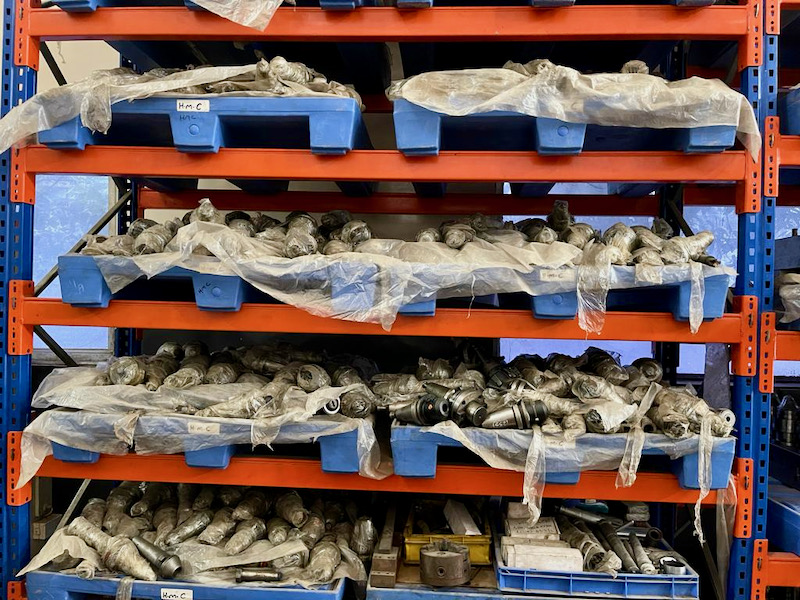

Includes approximately 500 tool holders and tools
Condition : In excellent condition, very accurate and will remain in production till sold
Documentation : Available
Location : Daman, India

To see video of machine in operation, please visit here - https://youtu.be/rl9lnEOcax8
