ITEM # : PIMS018
Make : Krauss Maffei
Model : KM175-1900CV
New in : 1998
Serial Number : 174280
Machine Voltage / Amp / Frequency : 400 V / 354 A / 50 Hz
Pump Motor : 44.4 kW @ 60 Hz

To download machine specifications, kindly click here
To download machine layout, kindly click here

Special offer - can be supplied completely refurbished with new PLC & Servo Pump system for improved speed, accuracy and energy efficiency over original machine design ! Contact us for more details.

Includes as options-

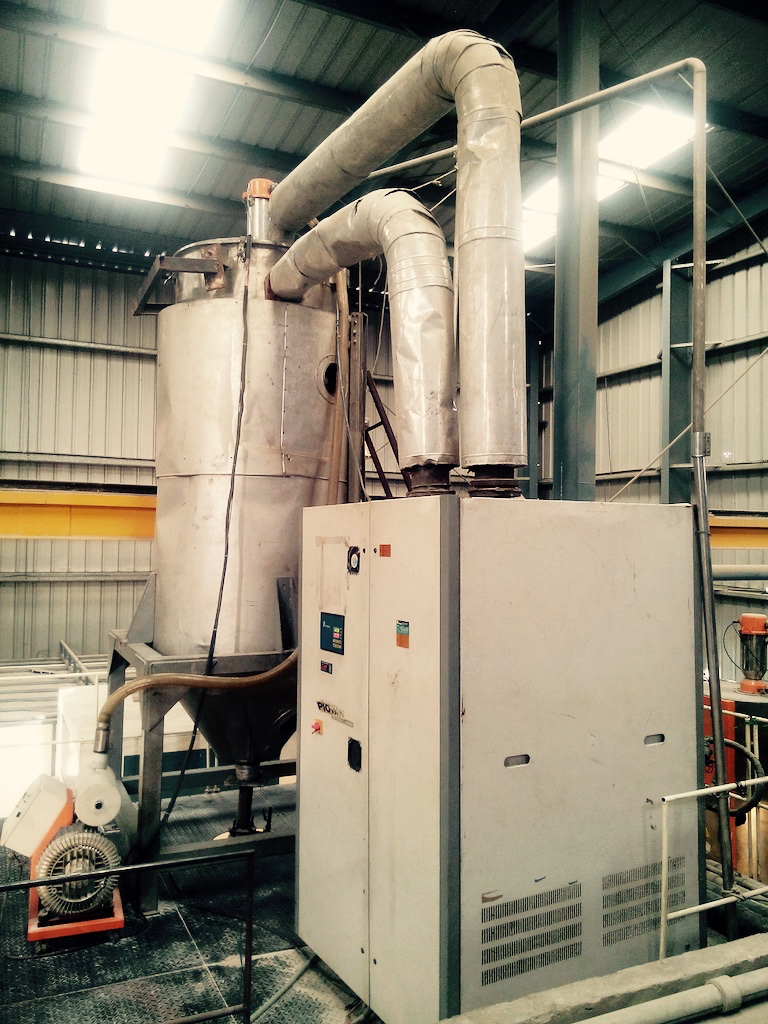

Piovan Resin Dryer DS428
Fasti MSP 20C Mould Dehumidifier
24 Drop Hot Runner

Mould Option 1 : 24 Drop Mould, conversion kit, gripper plate, and EOAT for producing 100.5 mm long PCO1810 21.5, 25 & 27 gm preforms + PCO1810 Thick Neck 29 gm preforms + Alaska 21, 24.5 & 26.5 gm preforms
Cycle Times / Outputs are-
PCO1810 21.5 gm : 13.2 sec / 6,500 PPH
PCO1810 25 gm : 15.4 sec / 5,600 PPH
PCO1810 27 gm : 16.6 sec / 5,200 PPH
PCO1810 Thick Neck 29 gm : 17.3 sec / 5,000 PPH
Alaska 21 gm : 13.2 sec / 6,500 PPH
Alaska 24.5 gm : 15.4 sec / 5,600 PPH
Alaska 26.5 gm : 16.6 sec / 5,200 PPH

Mould Option 2 : 24 Drop Mould, conversion kit, gripper plate, and EOAT for producing 125 mm long 28, 30 and 36 gm preforms in PCO1810 and Alaska Neck Finishes
Cycle Times / Outputs are-
PCO1810 28.5 gm : 13.5 sec / 6,400 PPH
PCO1810 32.5 gm : 14.9 sec / 5,800 PPH
PCO1810 36 gm : 16.5 sec / 5,200 PPH
Alaska 28 gm : 13.5 sec / 6,400 PPH
Alaska 32 gm : 14.9 sec / 5,800 PPH
Alaska 35.5 gm : 16.5 sec / 5,200 PPH

Mould Option 3 : 24 Drop Mould, conversion kit, gripper plate, and EOAT for producing 133 mm long PCO1810 42 & 48 gm preforms + PCO1810 Thick Neck 48 gm preforms
Cycle Times / Outputs are-
PCO1810 42 gm : 18.2 sec / 4,800 PPH
PCO1810 48 gm : 21.5 sec / 4,000 PPH
PCO1810 Thick Neck 48 gm : 20 sec / 4,300 PPH

Note : Machine can also be sold without the moulds

To watch the video of the machine, kindly click here - https://youtu.be/AhxgoxvPAt0

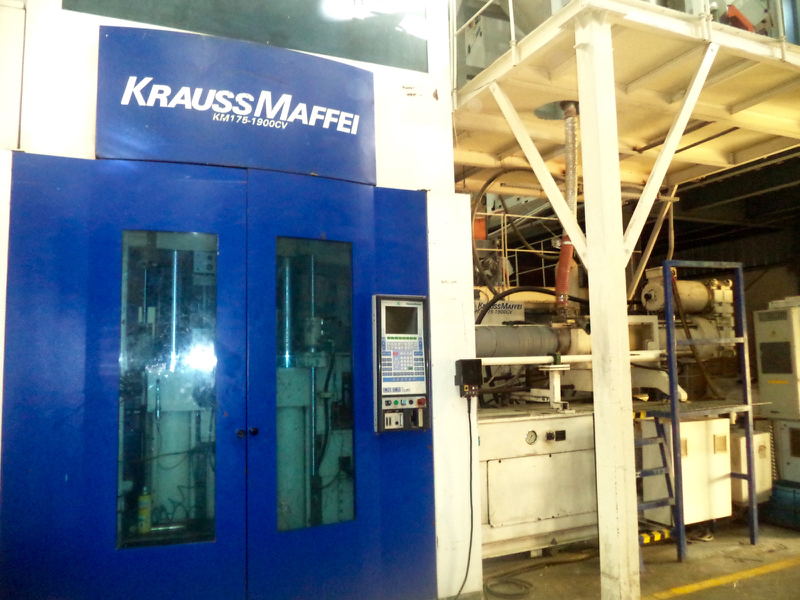

www.petequip.net_018_KM175-1900CV-1998_01

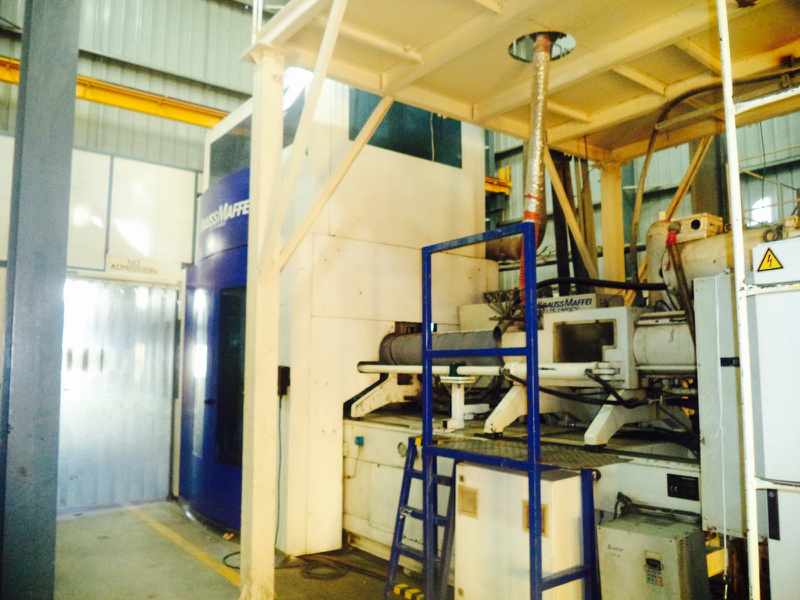

www.petequip.net_018_KM175-1900CV-1998_02

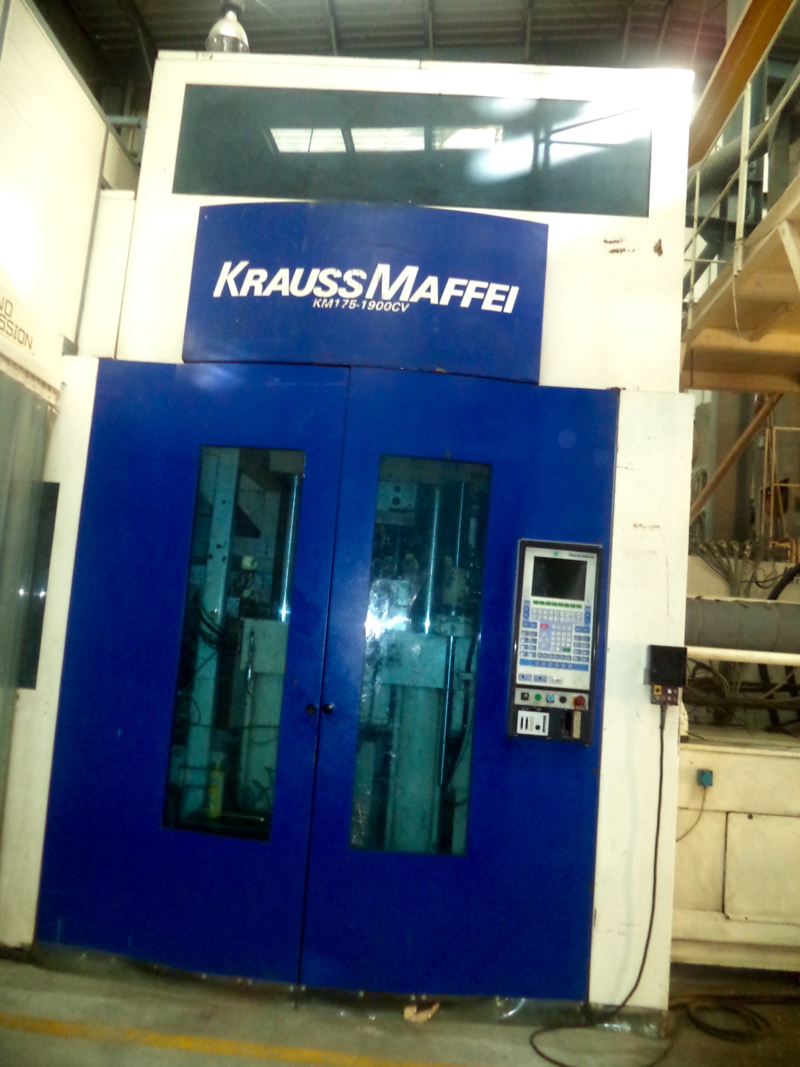

www.petequip.net_018_KM175-1900CV-1998_03

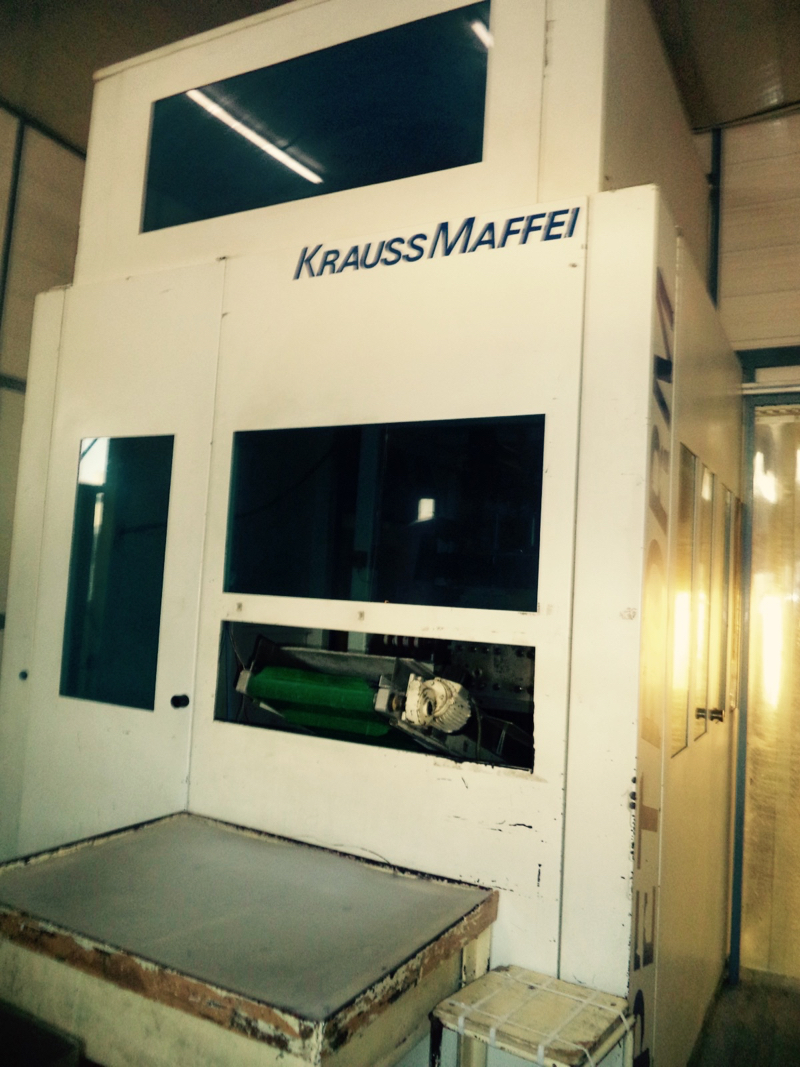

www.petequip.net_018_KM175-1900CV-1998_04

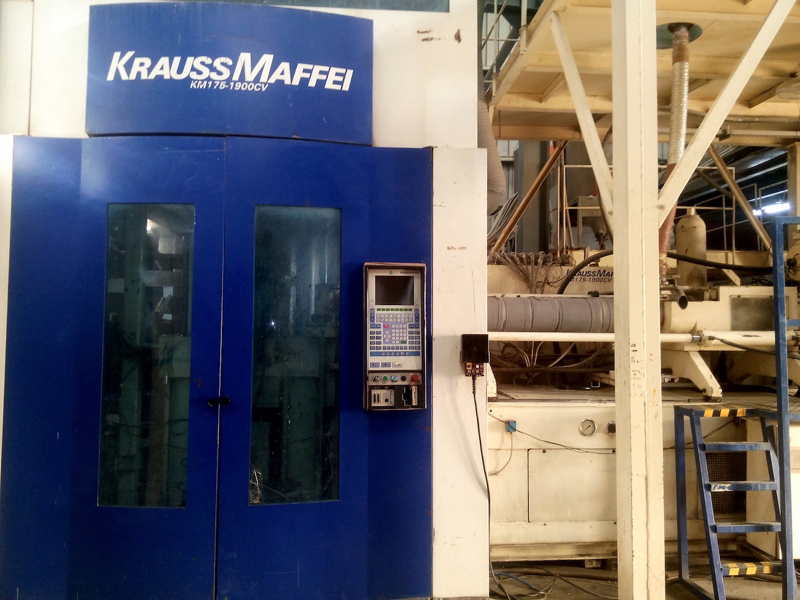

www.petequip.net_018_KM175-1900CV-1998_05

www.petequip.net_018_KM175-1900CV-1998_06

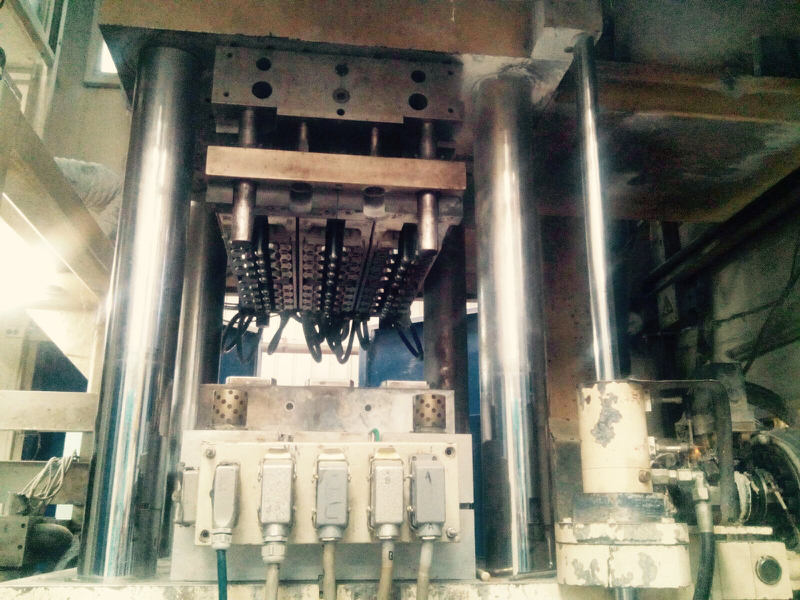

www.petequip.net_018_KM175-1900CV-1998_07

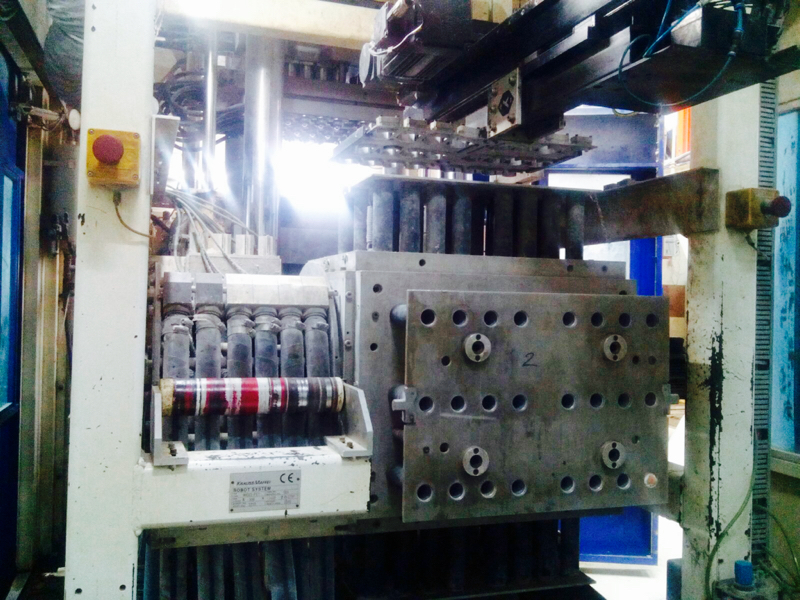

www.petequip.net_018_KM175-1900CV-1998_08

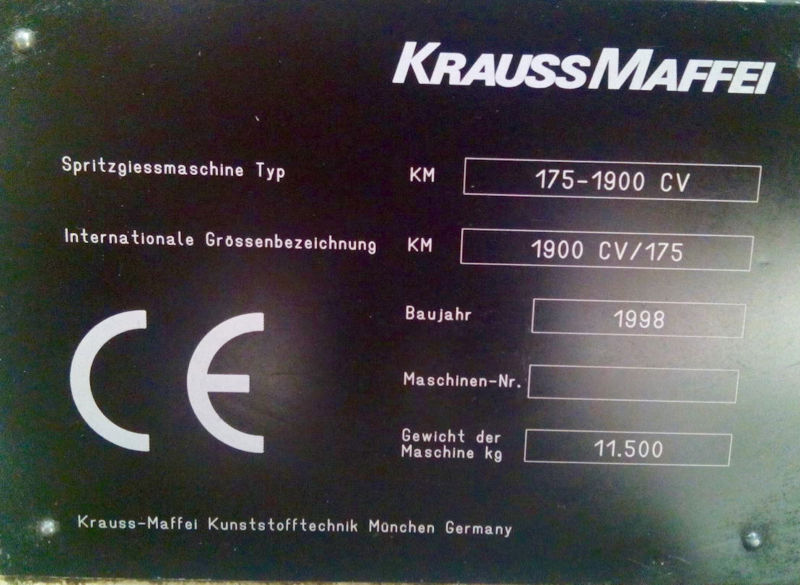

www.petequip.net_018_KM175-1900CV-1998_09
